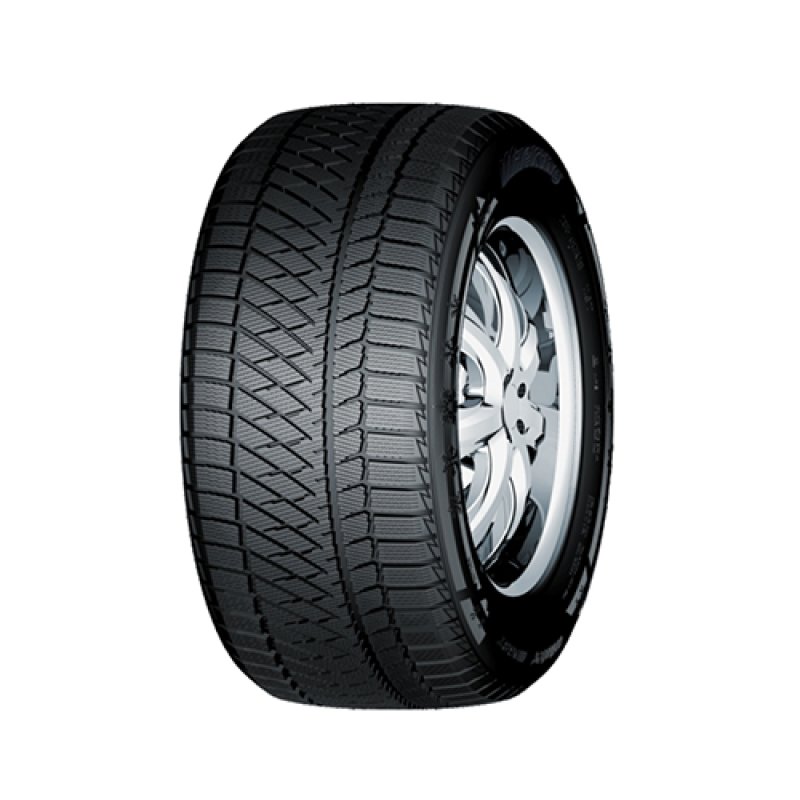

MK687
Design with three longitudinal zigzag pattern grooves provides water drainageperformance in wet road and excellent steer-ability on snow/ice road.
Design with big pattern block outside provides enough rigidity and excellent steer-ability.
Design with multiple crossed pattern inside enlarges snow holding capabiity andstrength of snow column, and enhanced the grip capability.4. The fine slots in the pattern reduced the hitting noise, the zigzag slots diffused thenoise frequency,making the noise even in various frequency waves.
PRODUCT SPECIFICATION
| Size | Load Index | Speed Symbol | Rim | Width(mm) | Diameter(mm) | Single Load(KG) | kPa |
| 145/70R12 | 69 | Q | 4.50B | 150 | 509 | 325 | 300 |
| 155/65R13 | 73 | Q | 4.50B | 157 | 532 | 365 | 300 |
| 175/65R14 | 82 | T | 5J | 177 | 584 | 475 | 300 |
| 185/65R14 | 90XL | T | 5 1/2J | 189 | 596 | 600 | 340 |
| 175/65R15 | 88XL | T | 5J | 177 | 609 | 560 | 340 |
| 185/55R15 | 82 | T | 6J | 194 | 585 | 475 | 300 |
| 185/60R15 | 88XL | T | 5 1/2J | 189 | 603 | 560 | 340 |
| 185/65R15 | 92XL | T | 5 1/2J | 189 | 621 | 630 | 340 |
| 195/50R15 | 82 | H | 6J | 201 | 577 | 475 | 300 |
| 195/65R15 | 95XL | T | 6J | 201 | 635 | 690 | 340 |
| 205/55R16 | 94XL | T | 6 1/2J | 214 | 632 | 670 | 340 |
| 205/60R16 | 96XL | T | 6J | 209 | 652 | 710 | 340 |
| 215/55R16 | 97XL | T | 7J | 226 | 642 | 730 | 340 |
| 215/60R16 | 99XL | T | 6 1/2J | 221 | 664 | 775 | 340 |
| 215/65R16 | 102XL | T | 6 1/2J | 221 | 686 | 850 | 340 |
| 225/70R16 | 103 | T | 6.5J | 228 | 722 | 875 | 300 |
| 245/70R16 | 107 | T | 7J | 248 | 750 | 975 | 300 |
| 215/55R17 | 98XL | T | 7J | 226 | 668 | 750 | 340 |
| 205/50R17 | 93XL | T | 6 1/2J | 214 | 638 | 650 | 340 |
| 205/55R17 | 95XL | H | 6 1/2J | 214 | 658 | 690 | 340 |
| 225/45R17 | 94XL | T | 7 1/2J | 225 | 634 | 670 | 340 |
| 225/50R17 | 98XL | T | 7J | 233 | 658 | 750 | 340 |
| 225/55R17 | 101XL | T | 7J | 233 | 680 | 825 | 340 |
| 225/60R17 | 103XL | T | 6 1/2J | 228 | 702 | 875 | 340 |
| 225/65R17 | 106XL | T | 6 1/2J | 228 | 724 | 950 | 340 |
| 235/65R17 | 108XL | T | 7J | 240 | 738 | 1000 | 340 |
| 245/65R17 | 107 | T | 7J | 248 | 750 | 975 | 300 |
| 215/55R18 | 99XL | H | 7J | 226 | 693 | 775 | 340 |
| 225/55R18 | 102XL | T | 7J | 233 | 705 | 850 | 340 |
| 225/60R18 | 104XL | T | 6 1/2J | 228 | 727 | 900 | 340 |
| 235/45R18 | 98XL | H | 8J | 236 | 669 | 750 | 340 |
| 235/50R18 | 101XL | V | 7.5J | 245 | 693 | 825 | 340 |
| 235/60R18 | 107XL | T | 7J | 240 | 739 | 975 | 340 |
| 235/65R18 | 110XL | T | 7J | 240 | 763 | 1060 | 340 |
| 245/45R18 | 100XL | T | 8J | 243 | 677 | 800 | 340 |
| 255/55R18 | 109XL | T | 8J | 265 | 737 | 1030 | 340 |
| 265/60R18 | 114XL | T | 8J | 272 | 775 | 1180 | 340 |
| 285/60R18 | 116 | T | 8 1/2J | 292 | 799 | 1250 | 340 |
| 225/45R19 | 96XL | H | 7.5J | 225 | 685 | 710 | 340 |
| 225/55R19 | 99 | H | 7J | 233 | 731 | 775 | 300 |
| 235/35R19 | 91XL | V | 8 1/2J | 241 | 647 | 615 | 340 |
| 235/40R19 | 96XL | V | 8 1/2J | 241 | 671 | 710 | 340 |
| 235/50R19 | 103XL | V | 7.5J | 245 | 719 | 875 | 340 |
| 235/55R19 | 105XL | H | 7 1/2J | 245 | 741 | 925 | 340 |
| 245/45R19 | 102XL | H | 8J | 243 | 703 | 850 | 340 |
| 245/55R19 | 107XL | H | 7 1/2J | 253 | 753 | 975 | 340 |
| 255/40R19 | 100XL | V | 9J | 260 | 687 | 800 | 340 |
| 255/45R19 | 104XL | H | 8 1/2J | 255 | 713 | 900 | 340 |
| 255/50R19 | 107XL | H | 8J | 265 | 739 | 975 | 340 |
| 235/45R20 | 100XL | H | 8J | 236 | 720 | 800 | 340 |
